To facilitate engineering procurement and quick selection for channel customers, this article systematically compares two commonly used metal mesh products from Jin Hai Company-Galvanized Wire Mesh and Welded Wire Mesh-across five dimensions: manufacturing process, material, specifications, performance, and application. This comparison aims to assist in making cost-effective decisions in various scenarios.

      Ⅰ.The essence of craftsmanship:Galvanized Wire Netting & Welded Wire Mesh

        Galvanized Wire Meshuses low-carbon steel wire as the base material, forming regular square mesh through 'warp and weft interlacing'. It can either be galvanized before weaving or woven first and then galvanized; the weaving process endows it with good flexibility and cuttability.

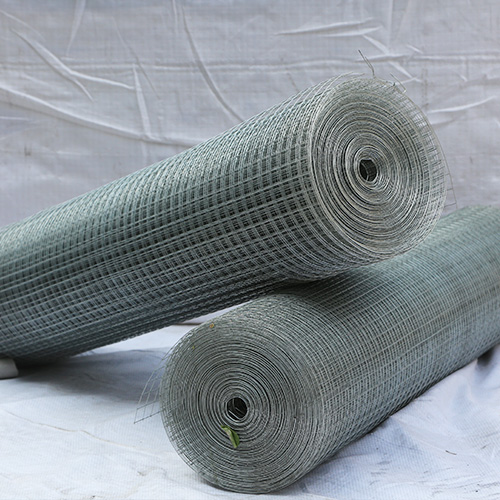

        Welded Wire Mesh, on the other hand, forms a rigid mesh by spot welding the wire intersections with resistance at the mesh points. It can be made from low-carbon steel wire, galvanized wire, stainless steel wire, or PVC-coated wire, with specifications covering a range of wire diameters and mesh sizes. The welding structure enhances its overall integrity and resistance to deformation.

      Ⅱ. Anti-corrosion performance comparison

        Galvanized Wire Mesh typically uses electro-galvanizing or hot-dip galvanizing of steel wire.The zinc layer isolates corrosive media,making it robust in moderate humidity environments.For higher corrosion resistance,the quality of the zinc layer can be improved or a more densely meshed specification can be selected.

        Welded Wire Mesh offers greater flexibility in material options: in addition to electro-galvanized low-carbon steel, 304/316 series stainless steel can be chosen to handle high humidity, weak corrosion, or even mild chemical media. Alternatively, PVC coating can be applied to further enhance outdoor weather resistance and aesthetic appeal.

      Ⅲ. Aperture segmentation and filament diameter range

        Galvanized Wire Mesh has common mesh counts ranging from 3 to 60, corresponding to aperture sizes of approximately 0.30 to 6.87 mm, with wire diameters of about 0.12 to 1.60 mm. Customization for higher mesh counts and roll sizes is also available.

        Welded Wire Mesh offers multi-level specifications from coarse to fine apertures, compatible with various wire diameters and sheet/roll forms.

      Ⅳ. flexible fitting vs. rigid support

        Galvanized Wire Mesh has the advantage of being flexible, easy to cut, and suitable for curved surfaces, making it ideal for screening, window screens, and light protection. It is easier to handle details and trim at corners or curved surfaces.

        Welded Wire Mesh, on the other hand, offers better overall stability and impact resistance, making it suitable for framework fences, equipment protection, and support applications. It has high assembly efficiency and requires low maintenance in the long run.

        Jinhai offers multiple materials, various specifications, and custom sizes across two product lines, meeting both standardized bulk supply needs and small batch differentiated requirements, helping projects achieve the optimal balance between performance, budget, and delivery time.
