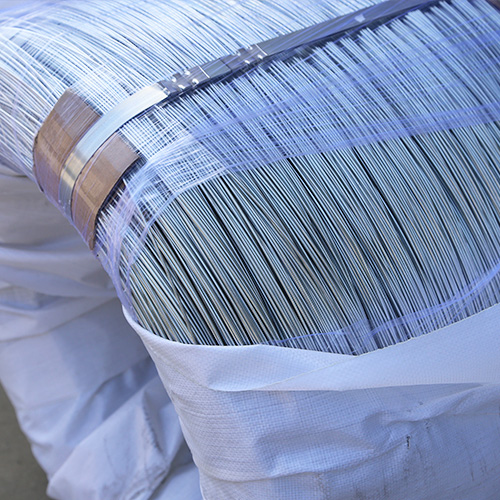

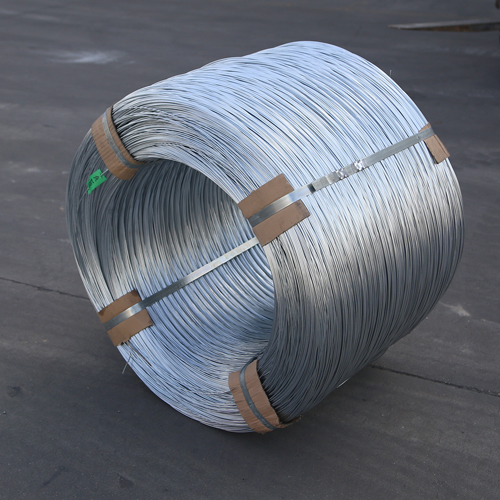

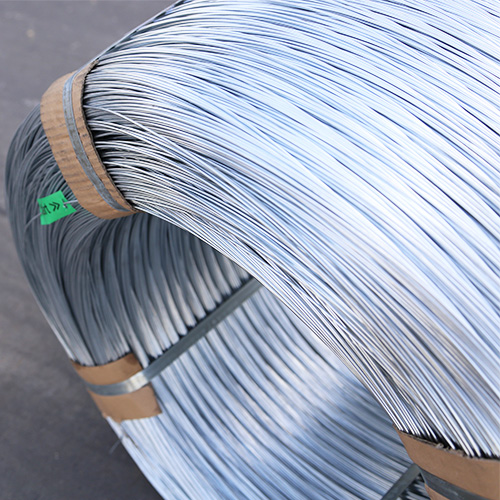

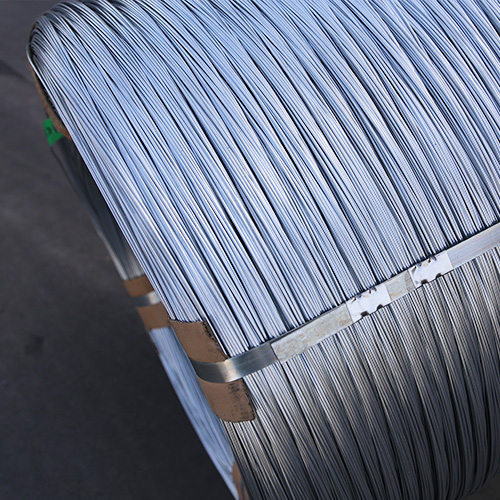

Hot-dipped galvanized iron wire is carbon steel with galvanized finish. Choosing wire rod is the most important step, then Descaling, Drawing, Spooling, Annealing, Acid pickling, Galvanizing, Take up and packing. Different zinc-coating types depending on the durability needed. Regular zinc-coating is about 40-60grams/m2, and heavy zinc-coating is above 220grams/m2. We test zinc-coating and tensile strength coil by coil, Packing and coil weight can be customized.
We have 7 galvanizing lines, one line is for 0.4mm-1.5mm, other 6lines are for 1.6mm-4.8mm. The output is 10000tons monthly.
Specification:
size (mm) | Min. zinc coating （g/㎡） | |||
A | B | C | D | |
≤0.25 | 18 | 15 | ||
0.25-0.40 | 30 | 25 | 20 | |
0.40-0.50 | 30 | 20 | ||
0.50-0.60 | 35 | 20 | ||
0.60-0.80 | 40 | 20 | ||
0.80-1.00 | 45 | 25 | ||
1.00-1.20 | 50 | 25 | ||
1.20-1.40 | 50 | 25 | ||
1.40-1.60 | 50 | 35 | ||
1.60-1.80 | 200 | 60 | 40 | |
1.80-2.20 | 200 | 60 | 40 | |
2.20-2.50 | 240 | 80 | 60 | 40 |
2.50-3.00 | 250 | 80 | 60 | 40 |
3.00-4.00 | 270 | 80 | 60 | 40 |
4.00-5.20 | 290 | 80 | 60 | 40 |
Zinc Aluminium Alloy Wire(Galfan Wire) | ||||
Tensile Strength | 350-550N/mm2 | |||
Zinc-coating | 200-500grams/m2 | |||
Elongation rate | 20%-25% | |||
Type | Zn-5% Al-MM Coated wire | |||
Zn-10% Al-MM Coated wire | ||||
Materials: Q195,Q235,SAE1006,SAE1008, SAE1045
Applications: Weaving mesh, construction, fence.
