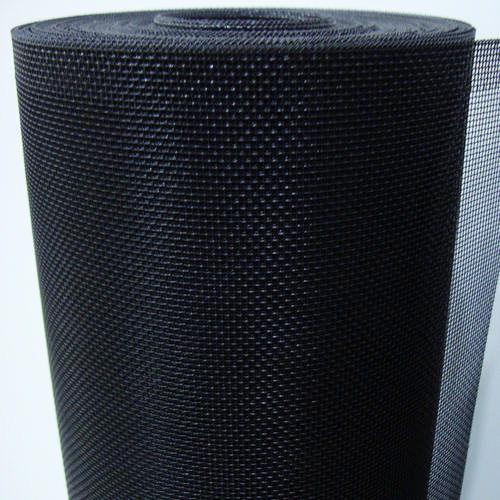

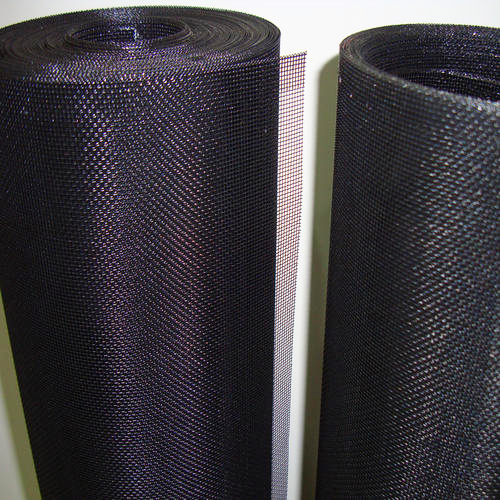

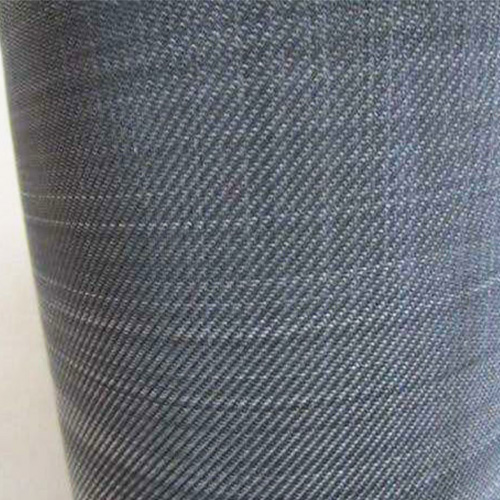

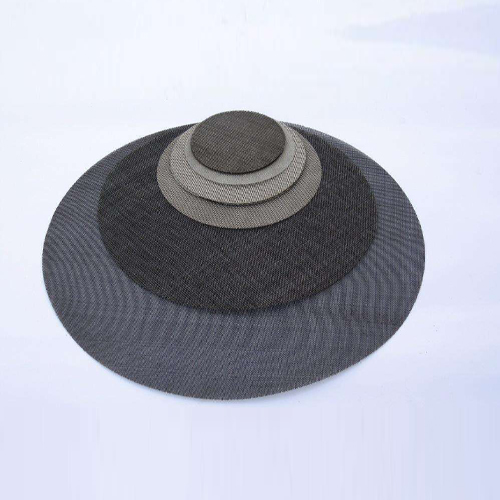

Black wire cloth, called Mild steel wire mesh or low carbon steel wire mesh, is produced from high quality low carbon steel wire without any surface treatment. Weaving types are Plain weave, twill weave , Plain Dutch weave and Herringbone Twill or Spigata. Black wire cloth is economical in filter industry, which use strong and durable wire mesh without strict anti-corrosion request. The wire cloth is normally supplied with roll packing, meanwhile, it also can be processed into various of filter discs.

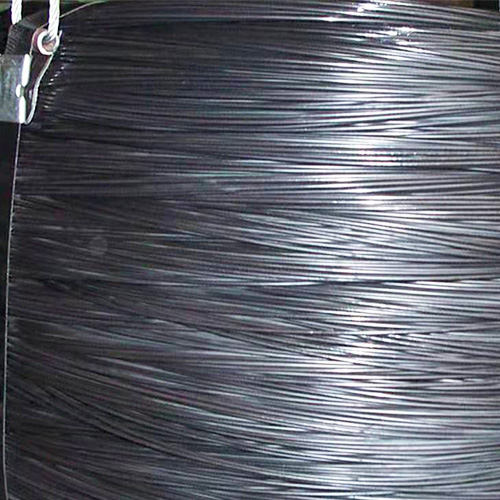

Material: Black annealed wire
Specification:
Black wire cloth/Mild steel wire cloth | |||
Mesh/linear inch | Wire diameter | Roll size | Weaving Type |
mm | |||
12 | 0.4-0.8 | 1x30m 1.22x30m 1.5x30m etc | Plain Weave |
14 | 0.4-0.6 | ||
16 | 0.6 | ||
18 | 0.5 | ||
22 | 0.55 | ||
26 | 0.4 | ||
30 | 0.36 | ||
30 | 0.45 | Spigato | |
42x42 | 0.32/0.35 | ||
14x88 | 0.5/0.35 | Plain Dutch Weave | |
14x100 | 0.4/0.3 | ||
18x100 | 0.4/0.3 | ||
24x110 | 0.35/0.25 | ||
30x150 | 0.24/0.18 | ||
Special mesh with different wire thickness could be customized | |||
Features: Economical, Durable
Applications: Filtering in rubber, plastic, oil industry
Black wire cloth, called Mild steel wire mesh or low carbon steel wire mesh, is produced from high quality low carbon steel wire without any surface treatment. Weaving types are Plain weave, twill weave , Plain Dutch weave and Herringbone Twill or Spigata. Black wire cloth is economical in filter industry, which use strong and durable wire mesh without strict anti-corrosion request. The wire cloth is normally supplied with roll packing, meanwhile, it also can be processed into various of filter discs.
Material: Black annealed wire
Specification:
Black wire cloth/Mild steel wire cloth | |||
Mesh/linear inch | Wire diameter | Roll size | Weaving Type |
mm | |||
12 | 0.4-0.8 | 1x30m 1.22x30m 1.5x30m etc | Plain Weave |
14 | 0.4-0.6 | ||
16 | 0.6 | ||
18 | 0.5 | ||
22 | 0.55 | ||
26 | 0.4 | ||
30 | 0.36 | ||
30 | 0.45 | Spigato | |
42x42 | 0.32/0.35 | ||
14x88 | 0.5/0.35 | Plain Dutch Weave | |
14x100 | 0.4/0.3 | ||
18x100 | 0.4/0.3 | ||
24x110 | 0.35/0.25 | ||
30x150 | 0.24/0.18 | ||
Special mesh with different wire thickness could be customized | |||
Features: Economical, Durable
Applications: Filtering in rubber, plastic, oil industry
