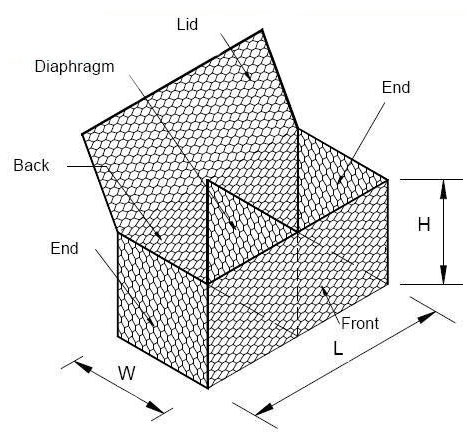

Gabion box is made of hexagonal double twist wire mesh to reinforce the structure.The edges of all mesh plates have steel wires thicker than the diameter of the mesh.The stone cage is divided into several units with a partition at 1 meter.

Abion Size(m) Mesh Model

8 x10 6 by 8

Length Width Height Gal. Gal.

Mesh wire diameter Gal. Weight Mesh wire diameter Gal. Weight

2m 1m 1m 2.7mm >;245 g/m2, 2.0 mm & gt;215g/m2

3m 1m 1m Selvedge wire diameter Gal. weight Selvedge wire diameter Gal. weight

4m 1m 1m 3.4mm >265 g/m2, 2.7 mm & gt;245g/m2

6m 1m 1m Lacing Wire 2.7mm Lacing Wire 2.0mm

Material: low carbon steel wire

Wire diameter: 2.0mm-4.0mm

Aperture: 60 * 80 mm,80 * 100 mm,100 * 120 mm,120 * 150 mm

Surface treatment: galvanized, hot dip galvanized, PVC coating, etc.

Regular size, support customization.

Gabion Wire box Features:

Good elasticity, corrosion resistance, simple structure, easy installation.

Gabion cage can be folded, save transportation costs

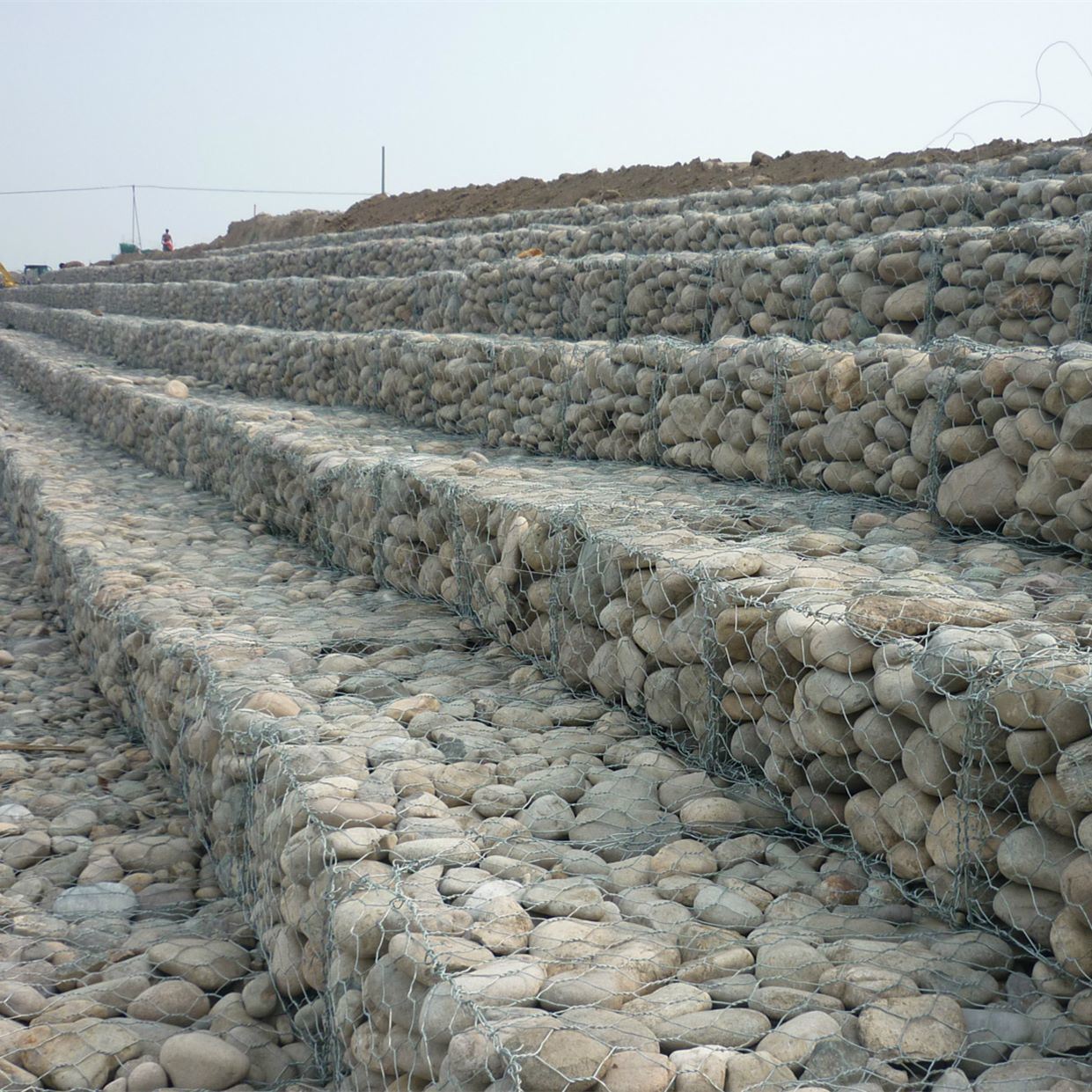

Gabion Wire box application:

The control and direction of water or flood waters

Rockfall protection

Water and soil conservation

Bridge protection

Reinforced soil structure

Coastal Area Protection Project

Port project

Keep away from dusty walls

Roadway protection
