Views: 10 Author: Site Editor Publish Time: 2024-12-27 Origin: Site
The twill weave method for stainless steel mesh is a common weaving technique widely used in industrial screening, filtration, decoration, and other fields. The main characteristic of twill weave is the diagonal arrangement of the weave, which enhances the strength, abrasion resistance, and filtration performance of the mesh. For stainless steel mesh, the twill weave method not only improves the mechanical properties of the mesh but also increases filtration precision, making it suitable for applications that require high load-bearing, high strength, and fine filtration.
Twill weave refers to the weaving process in which wires are interlaced at specific angles, typically 45°, 30°, or 60°, forming a diagonal pattern in the mesh. This method differs from plain weave, where the warp (vertical) and weft (horizontal) wires interlace in a perpendicular manner. In twill weave, the warp and weft wires interlace at an angle, creating a distinctive diagonal structure.
In the twill weave method for stainless steel mesh, the warp (longitudinal) and weft (transverse) wires interlace according to the following pattern:
Every two warp wires will cross over one or more weft wires, creating a specific diagonal (e.g., 45° angle).
The interlacing is done at an angle, not perpendicular to each other. Common twill weave patterns include 2/2 twill, 3/3 twill, and 5/5 twill, indicating the number of warp and weft wires involved in each interlacing step.

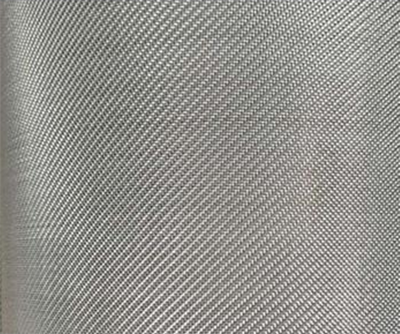

The surface of the twill weave fabric shows a clear diagonal stripe, creating a unique visual appearance due to the diagonal arrangement.
Adjusting parameters during the weaving process is crucial. Below are the key parameters for twill weave stainless steel mesh:
| Parameter | Description |
|---|---|
| Wire Diameter | Choose the appropriate wire diameter (typically 0.1mm - 5mm) based on mesh opening and filtration requirements. |
| Weaving Angle | Common angles are 30°, 45°, and 60°. Smaller angles result in tighter meshes, while larger angles improve strength but may reduce filtration accuracy. |
| Warp and Weft Ratio | Common patterns are 2/2, 3/3, 5/5, etc., affecting mesh texture and opening size. |
| Mesh Opening | The mesh opening size is controlled by selecting wire diameter and weaving density, suitable for various filtration needs. |
| Tension Control | Warp tension is typically slightly higher than weft tension to ensure mesh stability. |
| Weaving Speed | Weaving speed affects both quality and efficiency. High speed may lead to uneven mesh, while low speed may reduce production efficiency. |
By understanding the twill weave method in detail and adjusting the operational parameters, the performance of stainless steel mesh can be optimized for specific applications.
