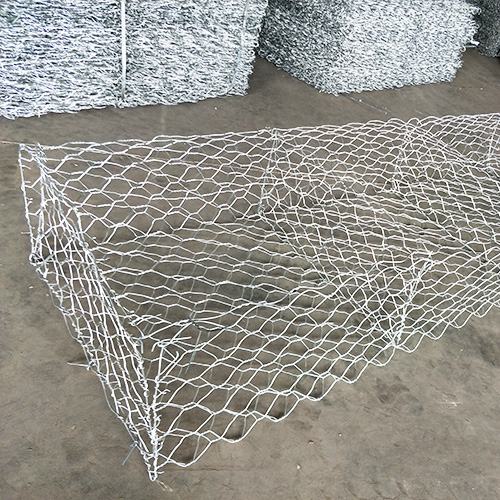

Gabion cage is made of hexagonal mesh woven gabion cage, the thickness of its diameter depends on the size of the mesh, the size of the diameter.If the material is galvanized, it is between 2.0mm and 4.0mm, while the diameter.If the material is PVC coated wire, it is 3.0mm to 4.5mm. The diameter of the woven edge line is usually one specification thicker than the diameter of the body line.The zinc.The wires also have a tough, durable PVC coating.This material can prolong the service life of the stone cage.

Specifications of gabion cage:

A) Gabion cage material: galvanized iron wire, PVC coated iron wire, Galfan (95%-5% aluminum alloy) low carbon steel wire, has good corrosion resistance.

B) Gabion cage mesh :2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4.0mm, etc.

C) Gabion cage edge diameter :2.4mm, 2.7mm, 3.0mm, 3.4mm, etc.

D) Gabion cage mesh :60 × 80mm, 80 × 100mm, 90 × 110mm, 100 × 120mm, 120 × 150mm, etc

Gabion box size: 1x1x1M, 1.5x1x1M, 2x1x1M, 2x1x0.5M, 3x1x1M, 4x1x1M, according to your requirements.

Gabion cage surface treatment: galvanized or PVC coating or galvanized plus PVC coating

Stone cage box application:

Control and direct water or floods

Prevention of rock fragmentation

Water and soil protection

Coastal area protection works
