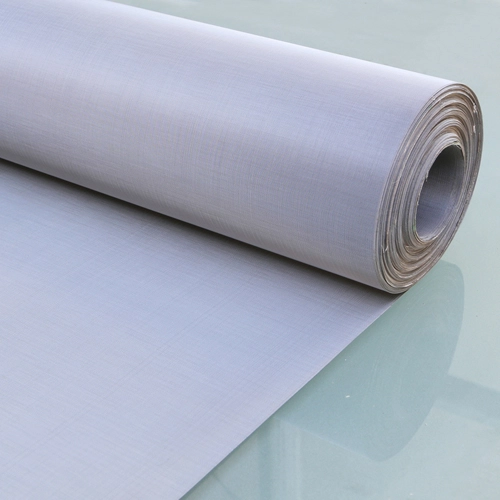

The plain weave method for stainless steel mesh is a commonly used technique for producing stainless steel screens, filter meshes, and other materials.The basic characteristic of plain weave is that the weft and warp threads alternate and intersect at right angles, forming a uniform grid structure. The plain weave method is simple, and the mesh has even apertures, making it widely used in filtration, sieving, and insulation applications.

Here is a detailed explanation of the plain weave method for stainless steel mesh:

1. Selecting Stainless Steel Wire

• Material Selection: Generally, 304 or 316 stainless steel wires are used. The choice of wire diameter depends on the required strength and the level of corrosion resistance needed for the application.

• Wire Diameter: Common wire diameters range from 0.1mm to 1.0mm. A larger wire diameter results in a stronger mesh, with better pressure and wear resistance.

2. Preparing the Weaving Machine

The plain weave method for stainless steel mesh is typically carried out using automatic weaving machines. The machine arranges the wires in the desired pattern of weft and warp threads.

• Warp Threads: These are the vertical threads, usually placed on the top and bottom of the weaving machine, and pulled taut.

• Weft Threads: These are the horizontal threads, which alternately pass through the warp threads.

3. Weaving Process: How to Thread the Wires

3.1 Preparing the Warp Threads

Top Warp Threads: The stainless steel wires are threaded through the top part of the weaving machine to ensure that all the warp threads are parallel and taut.

Bottom Warp Threads: Corresponding to the top threads, the wires are threaded through the lower part of the machine to keep the tension of the warp threads consistent.

3.2 Weft Threads Passing Through

Position of Weft Threads: The weft threads run horizontally, passing alternately over and under the warp threads.

• How to Pass the Weft Threads:

• First Warp Thread: The weft thread passes from top to bottom through the first warp thread.

• Second Warp Thread: The weft thread then passes from bottom to top through the second warp thread.

• This alternating pattern continues, with the weft thread passing over one warp thread, then under the next, until it reaches the other end of the fabric.

• Alternating Pattern: Each weft thread interlaces with two warp threads, ensuring that the threads do not run parallel to each other.

3.3 Adjusting the Density and Tension

• Density: The mesh density is determined by the number of warp and weft threads. Increasing the number of wires results in a denser fabric, while fewer wires create a looser weave. The density is typically chosen based on the desired filtration or sieving performance.

• Tension: The tension of both the warp and weft threads must be consistent. Too tight a tension can distort the fabric, while too loose a tension may affect the uniformity and strength of the mesh.

4. Finishing the Fabric

• After Weaving: Once the weaving is complete, the fabric may be treated to ensure uniformity of the mesh. Mechanical flattening or heat treatment may be applied to ensure a smooth and even surface.

• Cutting: The mesh is then cut to the required size based on its intended use. Cutting tools or laser cutting technologies are often used for precision.

• Trimming Excess Threads: Any extra threads from the weaving process are trimmed to ensure the final product is clean and of high quality.




The plain weave method for stainless steel mesh involves interlacing weft and warp threads alternately to form a grid structure. This method is simple but strong and is suitable for many industrial applications. During the weaving process, it is crucial to maintain consistent tension in the warp and weft threads to ensure the fabric’s strength and the uniformity of the mesh.
