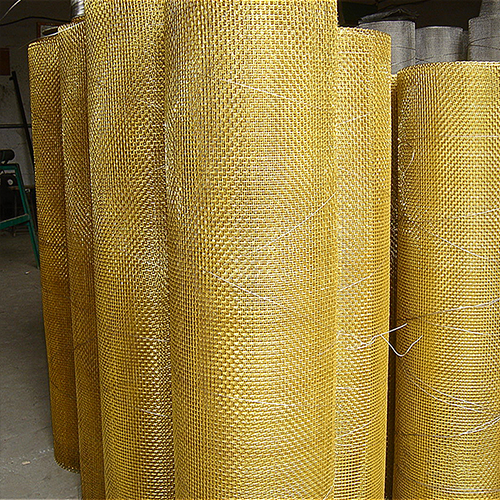

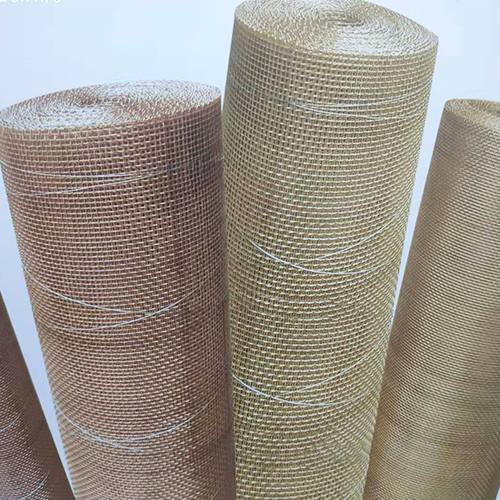

Brass woven mesh is has a golden yellow color, produced from Brass wire. Brass wire is an alloy that is comprised of copper and zinc. The presence of zinc in brass wire is important because it provides added abrasion resistance.As a wire mesh, The most commonly available brass woven wire mesh is with two kinds, we called 65Cu and 70Cu, The chemical composition of approximately 65% copper,35% Zinc and 70% copper ,30% Zinc. The common woven style for brass mesh is plain weave.The process for brass woven mesh is same let stainless steel wire cloth. Our QC test quality meter by meter. We assure of supplying satisfied mesh if order.
Materials: Brass wire
Specification:
Brass Woven Mesh | ||||
Mesh/linear inch | Wire diameter | Aperture | ||
inch | mm | inch | mm | |
6×6 | 0.028 | 0.71 | 0.139 | 3.52 |
8×8 | 0.024 | 0.61 | 0.1 | 2.565 |
10×10 | 0.02 | 0.508 | 0.08 | 2.032 |
12×12 | 0.018 | 0.457 | 0.0656 | 1.66 |
14×14 | 0.016 | 0.417 | 0.055 | 1.397 |
16×16 | 0.014 | 0.345 | 0.049 | 1.243 |
18×18 | 0.012 | 0.315 | 0.043 | 1.096 |
20×20 | 0.012 | 0.315 | 0.0376 | 0.955 |
20×20 | 0.012 | 0.315 | 0.033 | 0.84 |
24×24 | 0.012 | 0.315 | 0.0293 | 0.743 |
26×26 | 0.0116 | 0.295 | 0.0269 | 0.682 |
28×28 | 0.0116 | 0.295 | 0.024 | 0.612 |
30×30 | 0.011 | 0.247 | 0.0226 | 0.573 |
32×32 | 0.01 | 0.254 | 0.0213 | 0.54 |
34×34 | 0.0092 | 0.234 | 0.0202 | 0.513 |
36×36 | 0.0092 | 0.234 | 0.0186 | 0.472 |
38×38 | 0.0084 | 0.213 | 0.0179 | 0.455 |
40×40 | 0.0076 | 0.193 | 0.0174 | 0.442 |
50×50 | 0.0068 | 0.173 | 0.0132 | 0.335 |
60×60 | 0.0068 | 0.173 | 0.0098 | 0.25 |
80×80 | 0.0048 | 0.122 | 0.0077 | 0.196 |
90×90 | 0.0044 | 0.112 | 0.0067 | 0.17 |
100×100 | 0.00393 | 0.1 | 0.006 | 0.154 |
120×120 | 0.0032 | 0.081 | 0.0052 | 0.131 |
150×150 | 0.0024 | 0.061 | 0.0043 | 0.108 |
160×160 | 0.0024 | 0.061 | 0.0039 | 0.098 |
180×180 | 0.002 | 0.051 | 0.0035 | 0.09 |
200×200 | 0.002 | 0.051 | 0.003 | 0.076 |
Special mesh with different wire thickness could be customized | ||||
Feature: Soft and Malleable, high abrasion resistance, Corrosion Protection
Applications: Filtration, architectural and decorative applications
