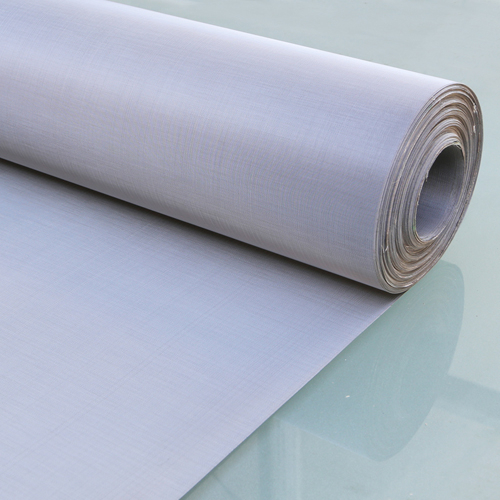

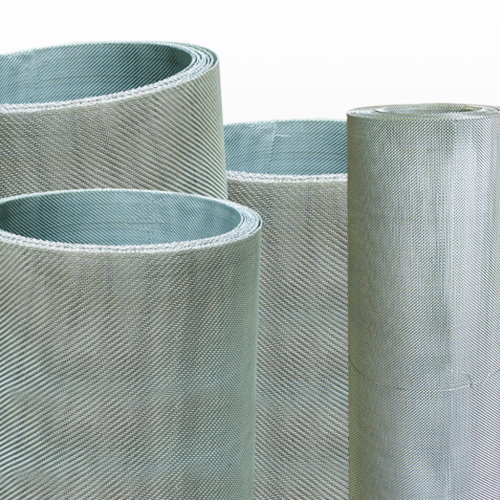

Stainless Steel Weave Wire Cloth

Stainless steel wire mesh is woven by stainless steel warp and weft wire, with the features of acid-resisting, alkali-resisting, heat-resisting, abrasion resistance. There are several types of stainless steel woven mesh, including Plain weave, Twill weave, Plain Dutch weave, Reverse Plain Dutch weave and Twill Dutch weave.
We are specialist suppliers of woven wire mesh, in a variety of different metals and offer an efficient and rapid service
Place of Origin:Hebei，China（Mainland）
Quality Inspection:ISO9001
Brand Name:Sunny

Availability:



Inquiry

Product Description

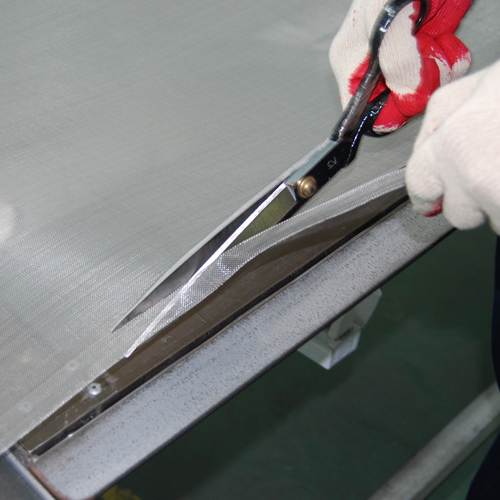

Stainless steel wire cloth is woven by stainless steel warp and weft wire. To make sure stainless steel wire with international standard, We chose high quality wire from big mill. Meanwhile, we carefully test wrap wire and weft wire chemical component and tensile strength. According to the roll mesh size, width and length, use wrap wire to finish feeling process. During production, The skilled workers control quality expertly, moreover, Our QC test mesh quality meter by meter. We have 150 sets of woven machine, as specialist suppliers of woven wire mesh, in a variety of different metals and offer an efficient and rapid service. We assure of good quality mesh and good packing, to make long-term business cooperation with worldwide customers.

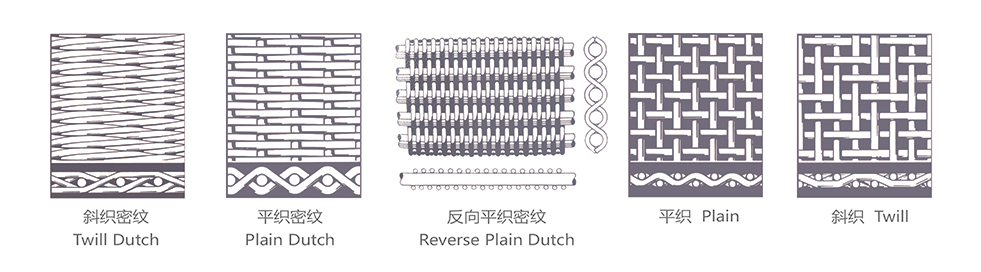

Stainless steel woven mesh have several types, including Plain weave, Twill weave, Plain Dutch weave, Reverse Plain Dutch weave and Twill Dutch weave.

Features : Acid-resisting, alkali-resisting, heat-resisting, abrasion resistance

Materials: AISI304, 304A,304L 316,316L,Brass, Phosphorus Bronze etc.

Applications: Filtrating, sieving, Straining in pharmaceutical industry, chemical industry, food industry etc.

Stainless steel wire cloth

Woven wire mesh
Mesh/linear inch	Wire diameter		Aperture		Open Surface
	inch	mm	inch	mm	%
1×1	0.157	4	0.84	21.4	71
2×2	0.079	2	0.421	10.7	71
2×2	0.071	1.8	0.429	10.9	74
2×2	0.063	1.6	0.437	11.1	76
3×3	0.079	2	0.25	6.4	58
3×3	0.071	1.8	0.263	6.67	62
3×3	0.063	1.6	0.27	6.87	66
3×3	0.055	1.4	0.278	7.07	70
4×4	0.063	1.6	0.187	4.75	56
4×4	0.047	1.19	0.203	5.16	65.9
4×4	0.039	1	0.211	5.35	71
5×5	0.055	1.4	0.14	3.68	52
5×5	0.047	1.2	0.153	3.88	57
5×5	0.039	1	0.161	4.08	65
6×6	0.047	1.2	0.12	3.03	51
6×6	0.039	1	0.127	3.23	58
6×6	0.0354	0.9	0.131	3.33	62
6×6	0.0315	0.8	0.135	3.03	66
6×6	0.028	0.71	0.139	3.52	69
8×8	0.43	1.1	0.08	2.08	42
8×8	0.43	1	0.08	2.18	47
8×8	0.0354	0.9	0.08	2.28	51
8×8	0.0315	0.8	0.08	2.38	56
8×8	0.028	0.71	0.08	2.465	60
8×8	0.0248	0.63	0.08	2.08	64
8×8	0.022	0.56	0.08	2.08	68
10×10	0.039	1	0.06	1.54	36
10×10	0.0354	0.9	0.065	1.64	42
10×10	0.0315	0.8	0.068	1.74	47
10×10	0.028	0.71	0.072	1.83	52
10×10	0.0248	0.63	0.075	1.91	57
10×10	0.022	0.56	0.078	1.98	61
10×10	0.0197	0.5	0.08	2.04	65
12×12	0.028	0.71	0.055	1.407	44
12×12	0.0248	0.63	0.0585	1.487	49
12×12	0.022	0.56	0.061	1.557	54
12×12	0.0197	0.5	0.0637	1.617	58
12×12	0.0177	0.45	0.0656	1.667	62
14×14	0.023	0.56	0.049	1.254	48
14×14	0.0197	0.5	0.052	1.314	52
14×14	0.0177	0.45	0.054	1.364	57
14×14	0.0157	0.4	0.0557	1.414	61
14×14	0.0142	0.36	0.051	1.454	64
16×16	0.0142	0.36	0.0483	1.228	60
16×16	0.0118	0.3	0.051	1.295	65
18×18	0.0118	0.3	0.0437	1.11	62
18×18	0.01	0.24	0.046	1.17	69
20×20	0.02	0.508	0.03	0.76	36
20×20	0.016	0.406	0.034	0.86	46.2
24×24	0.014	0.356	0.0277	0.7	44.2
30×30	0.013	0.33	0.0203	0.52	37.1
30×30	0.012	0.305	0.0213	0.54	40.8
30×30	0.009	0.229	0.0243	0.62	53.1
35×35	0.011	0.279	0.0176	0.45	37.9
40×40	0.01	0.254	0.015	0.38	36
50×50	0.009	0.229	0.011	0.28	30.3
50×50	0.008	0.203	0.012	0.31	36
60×60	0.0075	0.191	0.0092	0.23	30.5
60×60	0.007	0.178	0.0097	0.25	33.9
70×70	0.0065	0.165	0.0078	0.2	29.8
80×80	0.0065	0.165	0.006	0.15	23
80×80	0.0055	0.14	0.007	0.18	31.4
90×90	0.005	0.127	0.0061	0.16	30.1
100×100	0.0043	0.11	0.0057	0.144	31
100×100	0.00393	0.1	0.006	0.154	37
100×100	0.00354	0.09	0.0065	0.164	42
100×100	0.00315	0.08	0.0069	0.174	47
110×110	0.004	0.1016	0.0051	0.1295	30.7
120×120	0.0037	0.094	0.0046	0.1168	30.7
150×150	0.0026	0.006	0.0041	0.1041	37.4
160×160	0.0025	0.0635	0.0038	0.0965	36.4
180×180	0.0023	0.0584	0.0033	0.0838	34.7
200×200	0.0021	0.0533	0.0029	0.0737	33.6
250×250	0.0016	0.0406	0.0024	0.061	36
270×270	0.0016	0.0406	0.0021	0.0533	32.2
300×300	0.0015	0.0381	0.0018	0.0457	29.7
325×325	0.0014	0.0356	0.0017	0.0432	30
400×400	0.001	0.0254	0.0015	0.037	36
500×500	0.001	0.0254	0.001	0.0254	25
635×635	0.0008	0.0203	0.0008	0.0203	25
1mm=1000microns. Aperture(mm)=25.4/M-D ( M= mesh count per inch, d=Wire diameter in mm . Open area %=｛a2 /(a+d)2｝x100 (a=aperture in mm, d=wire diameter). Special mesh with different wire thickness could be customised


Plain Dutch weave mesh
Mesh	Wire Diameter				Weave
	Warp wire		Weft Wire
	in	mm	in	mm
12x64	0.023	0.58	0.0165	0.42	P.D.W
14x88	0.019	0.48	0.012	0.3	P.D.W
14x110	0.016	0.4	0.011	0.28	P.D.W
24x110	0.014	0.355	0.01	0.25	P.D.W
30X150	0.009	0.23	0.007	0.18	P.D.W
40X200	0.007	0.18	0.0055	0.14	P.D.W
50X250	0.0055	0.14	0.0045	0.11	P.D.W



Twill Dutch weave mesh
Mesh	Wire Diameter				Weave
	Warp wire		Weft wire
	in	mm	in	mm
16X200	0.014	0.355	0.01	0.25	T.D.W
20X200	0.0135	0.34	0.011	0.28	T.D.W
20X300	0.01	0.25	0.007	0.18	T.D.W
30X250	0.01	0.25	0.008	0.2	T.D.W
20X350	0.01	0.25	0.006	0.15	T.D.W
20X250	0.01	0.25	0.0082	0.21	T.D.W
50X600	0.007	0.18	0.0035	0.09	T.D.W
28X400	0.007	0.18	0.005	0.13	T.D.W
28X500	0.007	0.18	0.0045	0.11	T.D.W
50X700	0.0055	0.14	0.003	0.076	T.D.W
80X700	0.004	0.1	0.003	0.076	T.D.W
