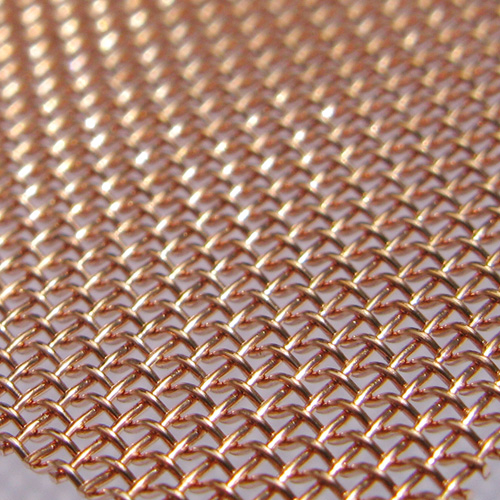

Phosphor Bronze woven mesh is has a brownish red color, produced from Phosphor Bronze wire. It is an alloy that is comprised of copper, stannum and zinc. The chemical composition for our Phosphor Bronze woven mesh is approximately 92.5% copper,4.15% Sn and 3.2% Zinc. Compared to Brass woven mesh, Phosphor Bronze woven mesh is superior in resistance to atmospheric corrosion. The common woven style is plain weave.
Specification:
Phosphor Bronze Woven Mesh | ||||
Mesh/linear inch | Wire diameter | Aperture | ||
inch | mm | inch | mm | |
6×6 | 0.028 | 0.71 | 0.139 | 3.52 |
8×8 | 0.024 | 0.61 | 0.1 | 2.565 |
10×10 | 0.02 | 0.508 | 0.08 | 2.032 |
12×12 | 0.018 | 0.457 | 0.0656 | 1.66 |
14×14 | 0.016 | 0.417 | 0.055 | 1.397 |
16×16 | 0.014 | 0.345 | 0.049 | 1.243 |
18×18 | 0.012 | 0.315 | 0.043 | 1.096 |
20×20 | 0.012 | 0.315 | 0.0376 | 0.955 |
20×20 | 0.012 | 0.315 | 0.033 | 0.84 |
24×24 | 0.012 | 0.315 | 0.0293 | 0.743 |
26×26 | 0.0116 | 0.295 | 0.0269 | 0.682 |
28×28 | 0.0116 | 0.295 | 0.024 | 0.612 |
30×30 | 0.011 | 0.247 | 0.0226 | 0.573 |
32×32 | 0.01 | 0.254 | 0.0213 | 0.54 |
34×34 | 0.0092 | 0.234 | 0.0202 | 0.513 |
36×36 | 0.0092 | 0.234 | 0.0186 | 0.472 |
38×38 | 0.0084 | 0.213 | 0.0179 | 0.455 |
40×40 | 0.0076 | 0.193 | 0.0174 | 0.442 |
50×50 | 0.0068 | 0.173 | 0.0132 | 0.335 |
60×60 | 0.0068 | 0.173 | 0.0098 | 0.25 |
80×80 | 0.0048 | 0.122 | 0.0077 | 0.196 |
90×90 | 0.0044 | 0.112 | 0.0067 | 0.17 |
100×100 | 0.00393 | 0.1 | 0.006 | 0.154 |
120×120 | 0.0032 | 0.081 | 0.0052 | 0.131 |
150×150 | 0.0024 | 0.061 | 0.0043 | 0.108 |
160×160 | 0.0024 | 0.061 | 0.0039 | 0.098 |
180×180 | 0.002 | 0.051 | 0.0035 | 0.09 |
200×200 | 0.002 | 0.051 | 0.003 | 0.076 |
Special mesh with different wire thickness could be customized |
Materials: Phosphor Bronze wire
Feature: High abrasion resistance, Corrosion Protection, Malleability, Durability and Ductility.
Applications: Filtration, architectural and decorative applications
Phosphor Bronze woven mesh is has a brownish red color, produced from Phosphor Bronze wire. It is an alloy that is comprised of copper, stannum and zinc. The chemical composition for our Phosphor Bronze woven mesh is approximately 92.5% copper,4.15% Sn and 3.2% Zinc. Compared to Brass woven mesh, Phosphor Bronze woven mesh is superior in resistance to atmospheric corrosion. The common woven style is plain weave.
Specification:
Phosphor Bronze Woven Mesh | ||||
Mesh/linear inch | Wire diameter | Aperture | ||
inch | mm | inch | mm | |
6×6 | 0.028 | 0.71 | 0.139 | 3.52 |
8×8 | 0.024 | 0.61 | 0.1 | 2.565 |
10×10 | 0.02 | 0.508 | 0.08 | 2.032 |
12×12 | 0.018 | 0.457 | 0.0656 | 1.66 |
14×14 | 0.016 | 0.417 | 0.055 | 1.397 |
16×16 | 0.014 | 0.345 | 0.049 | 1.243 |
18×18 | 0.012 | 0.315 | 0.043 | 1.096 |
20×20 | 0.012 | 0.315 | 0.0376 | 0.955 |
20×20 | 0.012 | 0.315 | 0.033 | 0.84 |
24×24 | 0.012 | 0.315 | 0.0293 | 0.743 |
26×26 | 0.0116 | 0.295 | 0.0269 | 0.682 |
28×28 | 0.0116 | 0.295 | 0.024 | 0.612 |
30×30 | 0.011 | 0.247 | 0.0226 | 0.573 |
32×32 | 0.01 | 0.254 | 0.0213 | 0.54 |
34×34 | 0.0092 | 0.234 | 0.0202 | 0.513 |
36×36 | 0.0092 | 0.234 | 0.0186 | 0.472 |
38×38 | 0.0084 | 0.213 | 0.0179 | 0.455 |
40×40 | 0.0076 | 0.193 | 0.0174 | 0.442 |
50×50 | 0.0068 | 0.173 | 0.0132 | 0.335 |
60×60 | 0.0068 | 0.173 | 0.0098 | 0.25 |
80×80 | 0.0048 | 0.122 | 0.0077 | 0.196 |
90×90 | 0.0044 | 0.112 | 0.0067 | 0.17 |
100×100 | 0.00393 | 0.1 | 0.006 | 0.154 |
120×120 | 0.0032 | 0.081 | 0.0052 | 0.131 |
150×150 | 0.0024 | 0.061 | 0.0043 | 0.108 |
160×160 | 0.0024 | 0.061 | 0.0039 | 0.098 |
180×180 | 0.002 | 0.051 | 0.0035 | 0.09 |
200×200 | 0.002 | 0.051 | 0.003 | 0.076 |
Special mesh with different wire thickness could be customized |
Materials: Phosphor Bronze wire
Feature: High abrasion resistance, Corrosion Protection, Malleability, Durability and Ductility.
Applications: Filtration, architectural and decorative applications
