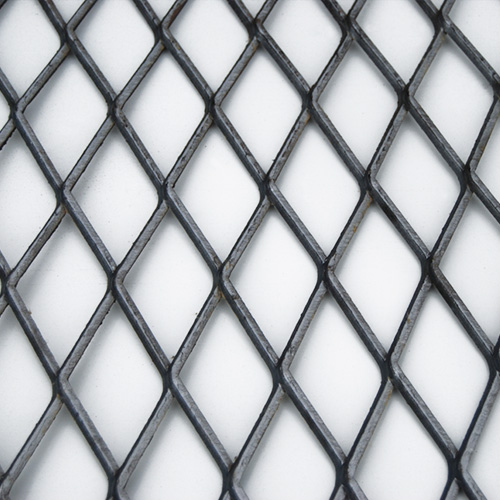

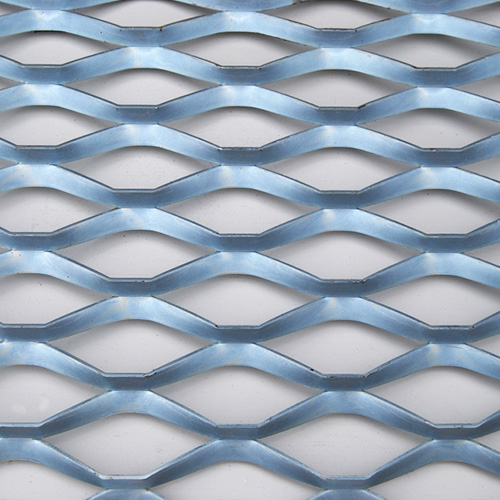

Expanded metal is produced by shearing and stretching flat metal plates, leaving the “knuckles” intact. It is available in various thicknesses, sizes, and designs. The strands and knuckles are set at uniform angles to the sheet plane, providing strength, rigidity, and effective load distribution to support frames. Its high strength-to-weight ratio makes it ideal for industrial, structural, and ornamental applications.
SWO: Short way of opening
LWO: Long way of opening
SWD: Short way of Diamond
LWD: Long way of Diamond
Strand and bond: Expanded metal consists of strands forming the sides of openings and bonds where strands intersect, connecting each diamond-shaped opening with the next.
Materials: Low carbon steel plate, Galvanized steel plate, Stainless steel plate, Aluminum plate
Applications: Protection, decoration, industrial platforms, safety barriers, and architectural features.
We are a professional factory and supplier, offering wholesale pricing and request quote options for custom expanded metal sheets.
Mesh size: mm | Strand size: mm | Standard size (kg/sheet) | |||
SW | LW | Thickness | Strand W | 6' x 3' | 8' x 4' |
12 | 30.5 | 1.2 | 1.5 | 3.95 | 7.01 |
12 | 30.5 | 1.6 | 2 | 7.01 | 12.5 |
12 | 30.5 | 2.3 | 3 | 15.1 | 26.8 |
22 | 50.8 | 1.6 | 2 | 3.81 | 6.78 |
22 | 50.8 | 2.3 | 2.5 | 6.86 | 12.2 |
22 | 50.8 | 3.2 | 3.5 | 13.4 | 23.8 |
25 | 61 | 1.6 | 2.5 | 4.2 | 7.46 |
25 | 61 | 2.3 | 3 | 7.24 | 12.9 |
25 | 61 | 3.2 | 4 | 13.5 | 23.9 |
34 | 76.2 | 2.3 | 3 | 5.33 | 9.48 |
34 | 76.2 | 3.2 | 4 | 9.88 | 17.6 |
34 | 76.2 | 4.5 | 5 | 17.4 | 30.9 |
50 | 152.4 | 2.3 | 3.5 | 4.23 | 7.52 |
50 | 152.4 | 3.2 | 4 | 6.72 | 11.9 |
50 | 152.4 | 4.5 | 5 | 11.8 | 21 |
75 | 203.2 | 3.2 | 4 | 4.48 | 7.96 |
75 | 203.2 | 4.5 | 5 | 7.88 | 14 |
75 | 203.2 | 6 | 6 | 12.6 | 22.4 |
115 | 304.8 | 3.2 | 5 | 3.64 | 6.48 |
115 | 304.8 | 4.5 | 6 | 6.17 | 11 |
115 | 304.8 | 6 | 7 | 9.6 | 17.1 |
Most specifications can be customized. | |||||
Specifications with small hole, The packing is by roll | |||
Mesh size: mm (SW x LW) | Thickness | Strand Width | Materials |
2x4 | 0.3mm | 0.4mm | Galvanized steel sheet Aluminum sheet |
3x6 | 0.4mm | 0.4mm | |
3.5x6 | 0.4mm | 0.4mm | |
5.5x10 | 0.5mm | 0.6mm | |
6x10 | 0.45mm | 0.5mm | |
7x15 | 0.45mm | 0.6mm | |
Other specifications can be customized | |||
