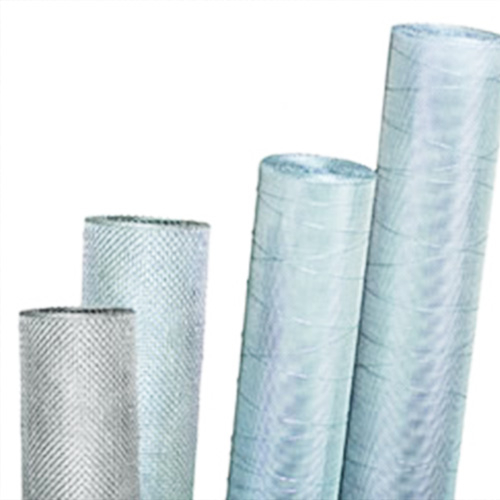

Galvanized wire netting ,called galvanized square wire mesh, is woven by Electro-galvanized wire, Hot-dipped galvanized wire. It also could be galvanized after woven. Galvanized wire netting is available in Plain Weave, Plain Dutch weave, crimped and Herringbone Twill or Spigata. Galvanized woven wire netting is extensively used in industries and construction as sieving grain, sieving sands, window screening.
Type: galvanized before or after weaving
Material: Low carbon steel
Applications: Sieving, Window screening
Mesh inch | Opening mm | Gauge | Gauge mm | Assortments Available |
3 | 6.87 | 16G | 1.60 | Hot-dipped galvanized after Weaving Hot-dipped galvanized before weaving Electro-galvanized after weaving Electro-galvanized before weaving |
4 | 5.15 | 18G | 1.20 | |
5 | 4.13 | 19G | 0.95 | |
6 | 3.43 | 21G | 0.80 | |
8 | 2.34 | 22G | 0.70 | |
10 | 1.94 | 23G | 0.60 | |
12 | 1.56 | 24G | 0.55 | |
14 | 1.40 | 27G | 0.41 | |
16 | 1.24 | 29G | 0.35 | |
18 | 1.11 | 30G | 0.30 | |
20 | 1.00 | 32G | 0.27 | |
22 | 0.90 | 33G | 0.25 | |
24 | 0.83 | 34G | 0.23 | |
26 | 0.78 | 36G | 0.20 | |
28 | 0.73 | — | 0.18 | |
30 | 0.70 | — | 0.15 | |
35 | 0.59 | — | 0.14 | |
40 | 0.50 | — | 0.14 | |
50 | 0.39 | — | 0.12 | |
60 | 0.30 | — | 0.12 | |
14x100 | 0.01 | 0.4/0.3 | ||
20x120 | 0.3/0.22 | |||
Above wire diameter is for reference, most specifications can be customized. | ||||
