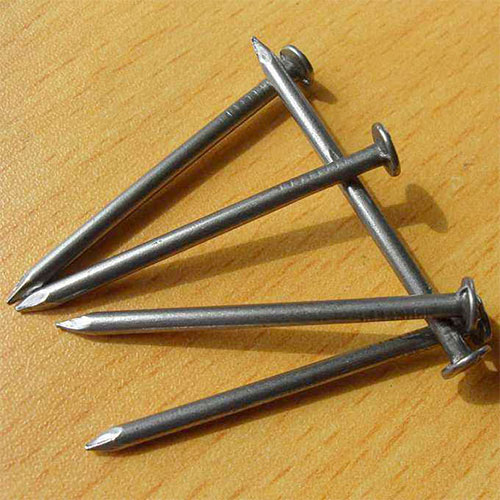

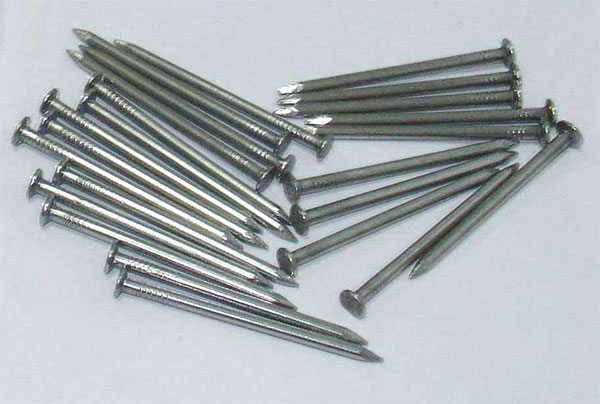

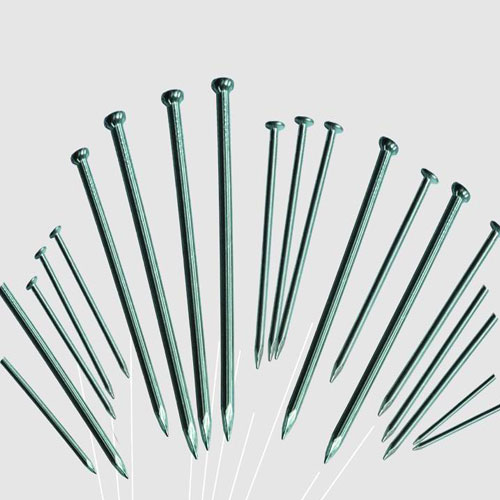

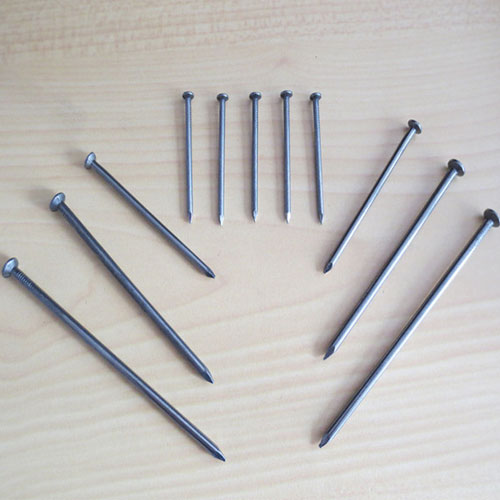

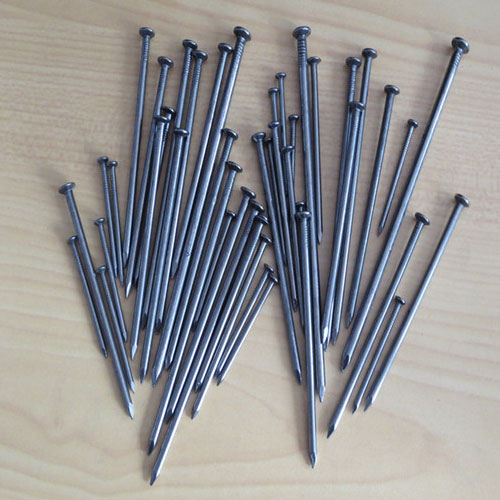

Common Nail
This kind of steel nail is one of the most commonly used, called common nail. The nails are produced by low carbon steel, which is widely used in construction, furniture finishing, cabinet work and packaging boxes. The procedure of common nail production is simply, as drawing ordered wire and punching and cutting into nail. The polishing process make common nail shinning and bright. Common nails with flat head is popular in the market, meanwhile, we also supply nail without head and double head nails. The normal packing 25kg/woven bag with low cost. Carbon box packing with different kilograms is also available.
Features: Great holding power, bending-resistant
Material: Hard drawn steel wire with Q235 or Q195.
Applications: Construction, packing material, Furniture industry.
| |
The standard size of common nail | ||||||
Size | Gauge | Thickness(mm) | Head dia(mm) | Head thickness(mm) | Length(mm) | Tail Length(mm) |
3/4” | 18# | 1.20±0.03 | 3.0±0.1 | 0.8±0.01 | 19±1 | 3.5±0.5 |
1” | 17# | 1.42±0.03 | 3.5±0.1 | 1.0±0.01 | 25±1 | 4.0±0.5 |
1-1/4” | 16# | 1.72±0.03 | 4.0±0.1 | 1.0±0.01 | 32±1 | 4.0±0.5 |
1-1/2” | 15# | 1.92±0.03 | 4.3±0.1 | 1.2±0.01 | 38±1 | 4.0±0.5 |
1-3/4” | 14# | 2.42±0.03 | 4.8±0.1 | 1.5±0.01 | 45±1 | 5.0±0.5 |
2” | 13# | 2.72±0.03 | 5.5±0.1 | 2.0±0.01 | 51±1 | 5.0±0.5 |
2-1/2” | 12# | 3.05±0.03 | 6.0±0.1 | 2.0±0.01 | 64±1 | 5.0±0.5 |
3” | 11# | 3.22±0.03 | 7.05±0.1 | 2.2±0.01 | 76±1 | 5.5±0.5 |
3-1/2” | 10# | 3.75±0.03 | 7.5±0.1 | 2.5±0.01 | 89±1 | 6.5±0.5 |
4” | 8# | 4.02±0.03 | 8.0±0.1 | 2.5±0.01 | 102±1 | 7.5±0.5 |
Special size could be customized | ||||||
Common Nail
This kind of steel nail is one of the most commonly used, called common nail. The nails are produced by low carbon steel, which is widely used in construction, furniture finishing, cabinet work and packaging boxes. The procedure of common nail production is simply, as drawing ordered wire and punching and cutting into nail. The polishing process make common nail shinning and bright. Common nails with flat head is popular in the market, meanwhile, we also supply nail without head and double head nails. The normal packing 25kg/woven bag with low cost. Carbon box packing with different kilograms is also available.
Features: Great holding power, bending-resistant
Material: Hard drawn steel wire with Q235 or Q195.
Applications: Construction, packing material, Furniture industry.
| |
The standard size of common nail | ||||||
Size | Gauge | Thickness(mm) | Head dia(mm) | Head thickness(mm) | Length(mm) | Tail Length(mm) |
3/4” | 18# | 1.20±0.03 | 3.0±0.1 | 0.8±0.01 | 19±1 | 3.5±0.5 |
1” | 17# | 1.42±0.03 | 3.5±0.1 | 1.0±0.01 | 25±1 | 4.0±0.5 |
1-1/4” | 16# | 1.72±0.03 | 4.0±0.1 | 1.0±0.01 | 32±1 | 4.0±0.5 |
1-1/2” | 15# | 1.92±0.03 | 4.3±0.1 | 1.2±0.01 | 38±1 | 4.0±0.5 |
1-3/4” | 14# | 2.42±0.03 | 4.8±0.1 | 1.5±0.01 | 45±1 | 5.0±0.5 |
2” | 13# | 2.72±0.03 | 5.5±0.1 | 2.0±0.01 | 51±1 | 5.0±0.5 |
2-1/2” | 12# | 3.05±0.03 | 6.0±0.1 | 2.0±0.01 | 64±1 | 5.0±0.5 |
3” | 11# | 3.22±0.03 | 7.05±0.1 | 2.2±0.01 | 76±1 | 5.5±0.5 |
3-1/2” | 10# | 3.75±0.03 | 7.5±0.1 | 2.5±0.01 | 89±1 | 6.5±0.5 |
4” | 8# | 4.02±0.03 | 8.0±0.1 | 2.5±0.01 | 102±1 | 7.5±0.5 |
Special size could be customized | ||||||
